Archway Studios Technical

Ground floor plan

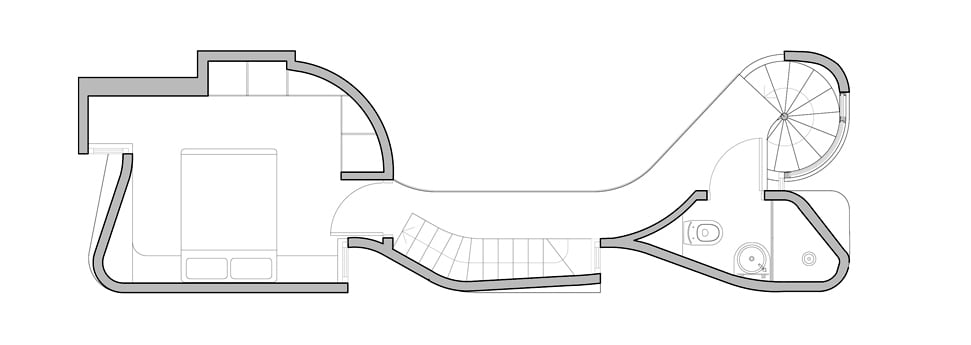

Mezzanine Plan

2nd floor plan

Skylight plan

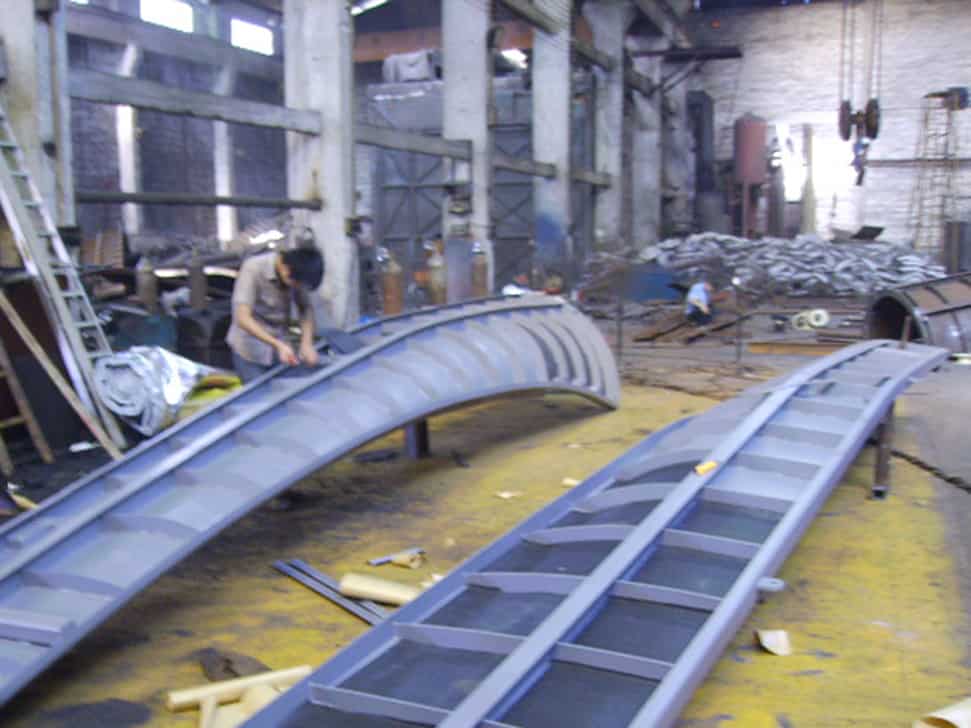

Structural steel grid assembled on flat bed jigs
Inner stressed steel skin welded to grid on jigs
Stressed panel welded from inside web. Lateral connection points aligned
anels undercoated and fitted with acoustic dampening membrane
Bulk thermal and acoustic insulation

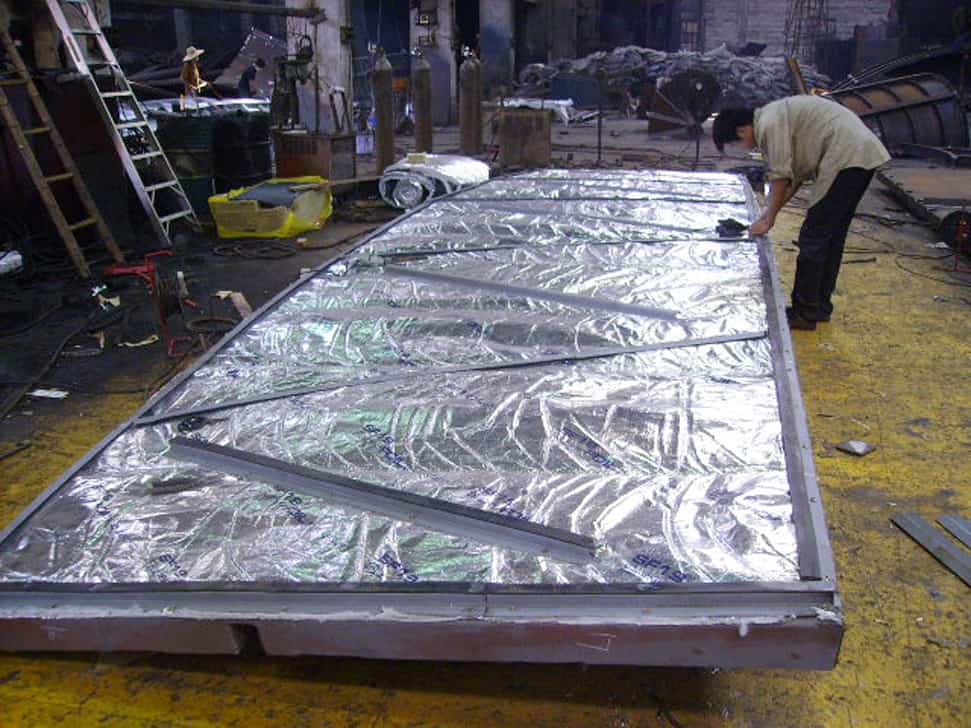

Thermal multi-foil blanket
Rubberised battens with weathering steel skin
Final coating

Unloading and jacking method for keeping boom below rail track
